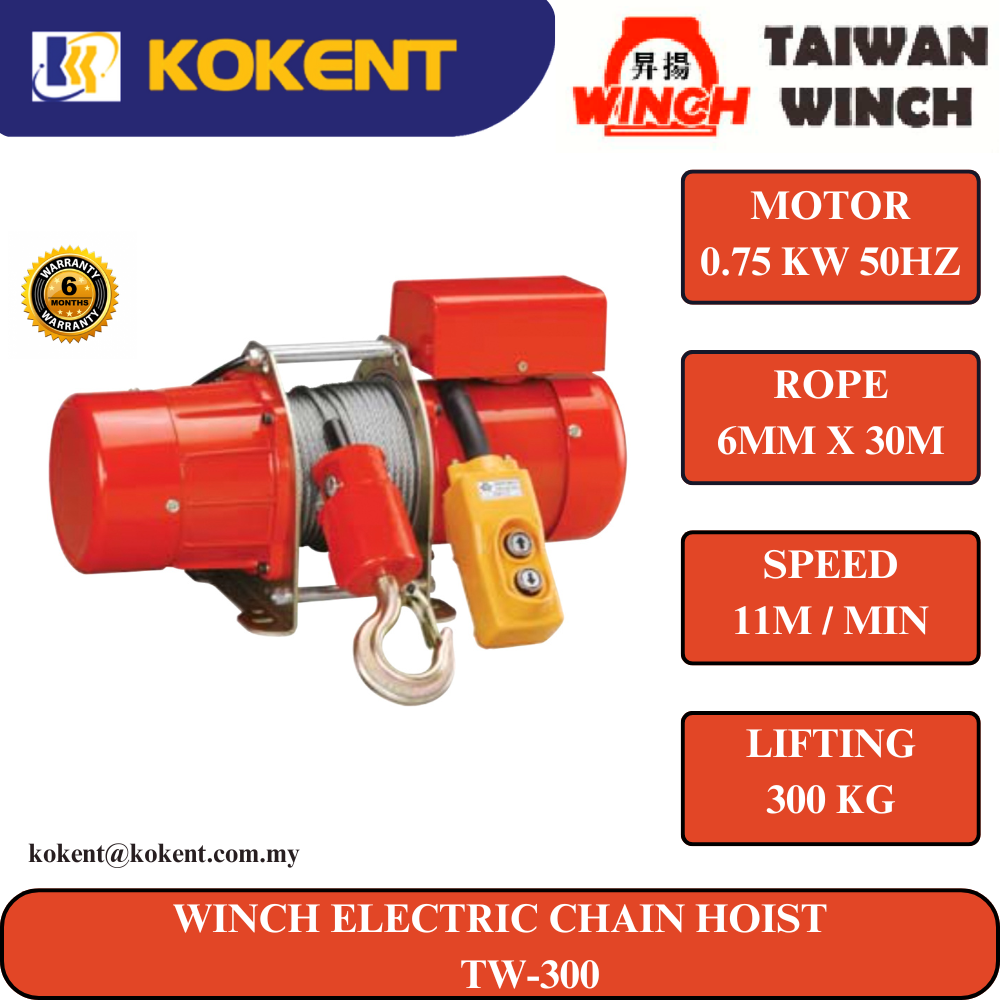

TAIWAN WINCH ELECTRIC CHAIN HOIST TW-300

TAIWAN WINCH ELECTRIC CHAIN HOIST TW-300
TAIWAN WINCH ELECTRIC CHAIN HOIST TW-300

TAIWAN WINCH ELECTRIC CHAIN HOIST TW-300

Product Code: TW300
Availability: Pre Order
Loading ...
Share:

TW series

Features:

  •  Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings quiet running.
  •  Heavy duty high efficiency ball bearing on all running surfaces.
  •  Planetary gearing design guarantees a powerful loadability and durable lifetime usage.
  •  Lightweight and compact design for easy installation.
  •  Electromagnetic spring-applied failsafe brake.
  •  Emergency stop function switch is available upon request.
  •  Low voltage control ass'y is available upon request.

TW - electric winch , electric hoist , 150kg ~ 500kg , 電動吊車 ,電動捲揚機 ,  220v ~ 240v , 6*30m rope

Model TW-200 TW-250 TW-300 TW-500 TC07-50
Lifting Capacity 200KG 250KG 300KG 500KG 500KG
Speed (M/mim) 50HZ 11 11 11 13 18
60HZ 13 13 13 16 21
Steel Rope 6mmx30M 6mmx30M 6mmx30M 8mmx30M 8mmx50M
Voltage 1PH 220V~240V
Motor(KW) 0.50 0.55 0.75 1.6 1.8
Body dimensions
(mm)
A 142 142 142 160 160
B 210 210 210 220 250
C 142 142 142 186 206
D 474 486 527 626 661
E 265 265 265 290 295
F 76 76 76 78 105
NW (KG) 29.7 30.2 33.6 47.0 57.4
GW (KG) 31.1 31.6 35.0 49.0 59.0
Packing (LxWxH)mm 535x270x325 535x270x325 600x270x325 685x270x325 710x270x325
