VIBTEC AIR VIBRATOR

VIBTEC AIR VIBRATOR
VIBTEC AIR VIBRATOR

VIBTEC AIR VIBRATOR

Product Code: VIBTEC AIR VIBRATOR
Availability: Pre Order
Loading ...
Share:

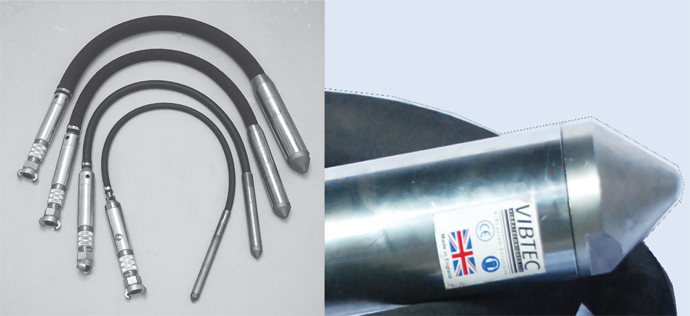

The VIBTEC V600 range of pneumatic concrete pokers is of high performance immersion vibrator of simple precision construction. Engineered with minimum moving parts and no bearings, these vibrators supplements our existing range and include the following features:

MODEL V600 FEATURES

  •  High efficiency
  •  Range of 5 sizes
  •  Standard in-line lubricator
  •  Maintenance free rotor
  •  Simple value operation
  •  Highly competitive cost

SPECIFCATIONS

Model V635 V645 V655 V665 V675
Head Dia (mm) 35 45 55 65 75
Frequency (VPM) 18000 17000 17000 18000 18000
Centrifugal Force (N) 1924 3500 6050 9301 14851
Free Air (1/min) 608 736 820 1018 1218
Total Weight (kgs) 6 8 9 10 15
Rad. of Effectiveness (cm) 20 25 38 44 50
