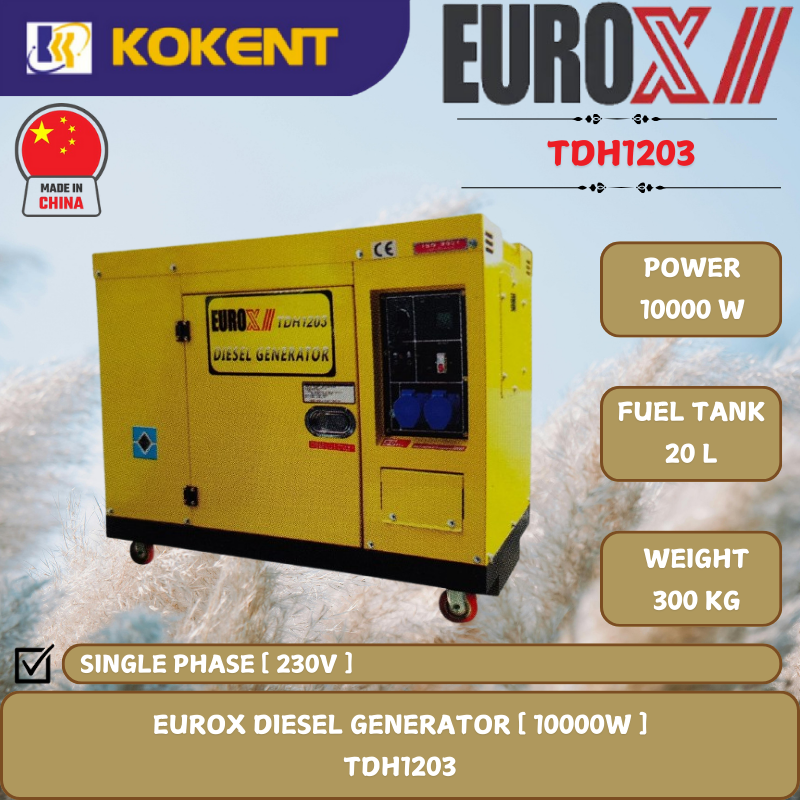

EUROX DIESEL GENERATOR [ 10000W.1-PHASE.280KG ] TDH1203

EUROX DIESEL GENERATOR [ 10000W.1-PHASE.280KG ]  TDH1203
EUROX DIESEL GENERATOR [ 10000W.1-PHASE.280KG ]  TDH1203

EUROX DIESEL GENERATOR [ 10000W.1-PHASE.280KG ] TDH1203

Product Code: TDH1203
Availability: In Stock
Loading ...
Share:

Specifications

  • Rated: 9000W
  • Max: 10000W
  • Fuel Tank: 20L
  • Frequency: 50 Hz
  • Engine Type: Air Cooled, Single Cylinder, Vertical, 4-Stroke, Direct Injection
  • Oil Cooling System: Oil Cooler
  • AC Output Voltage: 230 V | *415/230
  • Oil Temperature: 95 °c
  • DC Output: 12 V / 8.3 A
  • Engine Speed: 3600 rpm
  • Noise Level: ≥75 Db(A)/7m
  • Phase: Single/1.0 Cos(ф) | *three/0.8 Cos(ф)
  • Bore*stroke: 105x85 mm
  • Net / Gross Weight: 280 / 300 kg
  • Alternator:10 Kw (230 V) | *10 Kw (230 V / 415 V)
  • Displacement: 736 CC
  • Dimension: 1130x660x1100 mm
  • Excitation Type: Avr, Self-excited
  • Oil Capacity: 2.2 L
  • Protection Grade: LP23
  • Fuel Consumption: ≥330 G/kw.h
  • Engine Model: Pf1105fe
  • Lubricating Oil Model: Sae15w 40cd (Above Cd Grade)
